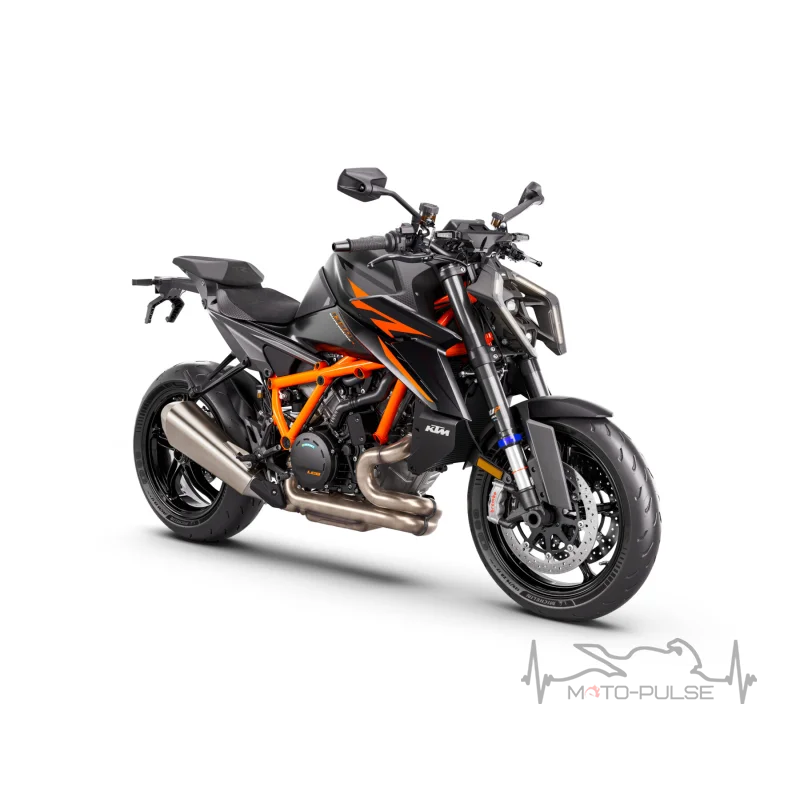

КТМ 1390 Super Duke 1390 R EVO 2024

TORQUE145 Nm

TRANSMISSION6-speed

BATTERY CAPACITY11.2 Ah

COOLINGLiquid cooled with water/oil heat exchanger

POWER IN KW140 kW

STARTERElectric starter

STROKE71 mm

BORE110 mm

CLUTCHPASC (TM) slipper clutch, hydraulically actuated

CO₂ EMISSIONS139 g/km

DISPLACEMENT1350 cm³

EMSKeihin EMS with RBW and cruise control, double ignition

DESIGN2-cylinder, 4-stroke, V 75°

FUEL CONSUMPTION5.9 l/100 km

LUBRICATIONForced oil lubrication with 3 oil pumps

WEIGHT (WITHOUT FUEL)200 kg

TANK CAPACITY (APPROX.)17.5 l

FRONT BRAKE DISC DIAMETER320 mm

REAR BRAKE DISC DIAMETER240 mm

FRONT BRAKE2 x Brembo Stylema Monobloc four piston, radially mounted caliper

REAR BRAKEBrembo twin-piston fixed calliper, brake disc

CHAIN525 X-Ring

FRAME DESIGNChrome-moly tubular space frame, powder-coated

GROUND CLEARANCE149 mm

SEAT HEIGHT834 mm

STEERING HEAD ANGLE65.3 °

SUSPENSION TRAVEL (FRONT)125 mm

SUSPENSION TRAVEL (REAR)140 mm
